Samsung Galaxy S9

Android 8.0

Set up your Samsung Galaxy S9 Android 8.0 for IMAP email

You can set up your phone to send and receive email messages from your email accounts. Using IMAP, your email messages are kept on the server and are synchronised between all of your devices. You're then able to access your email messages from other devices. To set up your phone for IMAP email, you need to set up your phone for internet.

Step 1 of 43

1. Find "Accounts"

Slide your finger downwards starting from the top of the screen.

Step 2 of 43

1. Find "Accounts"

Press the settings icon.

Step 3 of 43

1. Find "Accounts"

Press Cloud and accounts.

Step 4 of 43

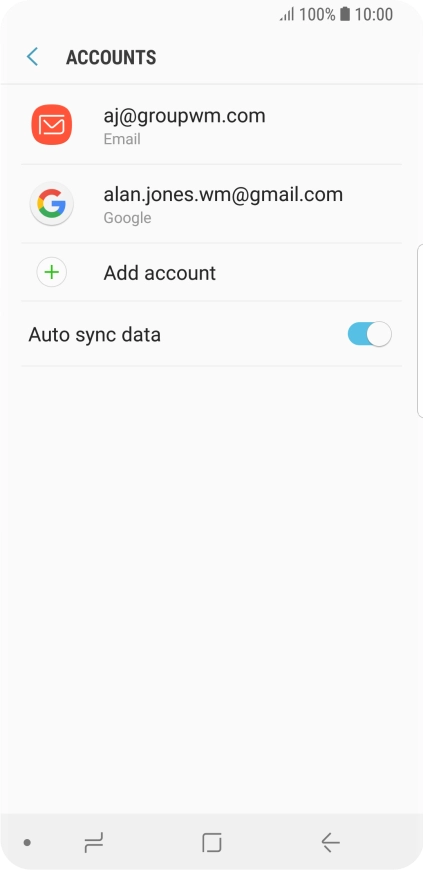

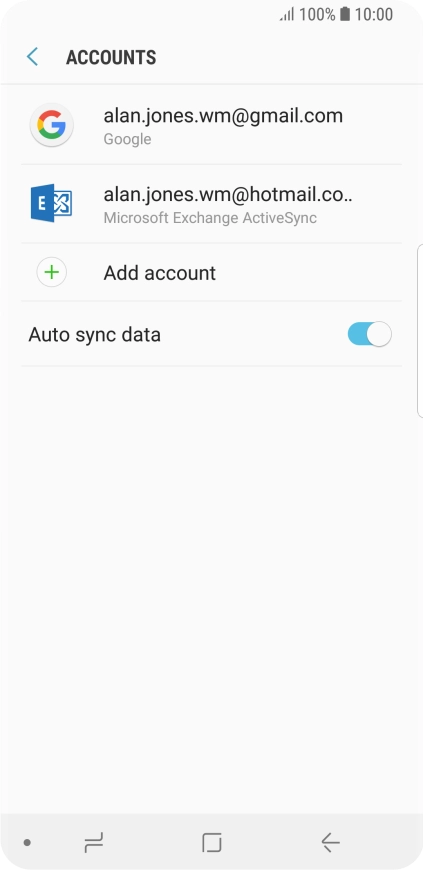

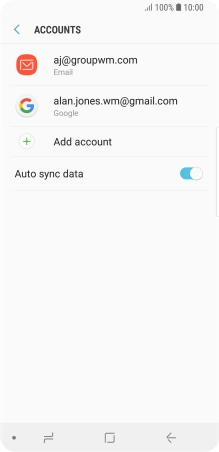

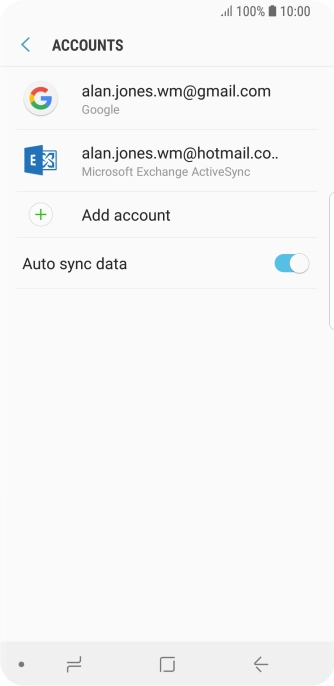

1. Find "Accounts"

Press Accounts.

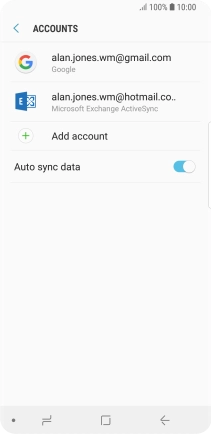

Step 5 of 43

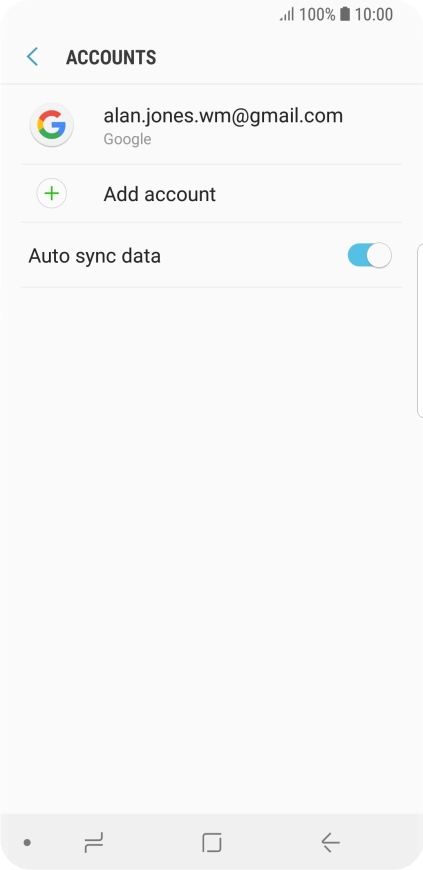

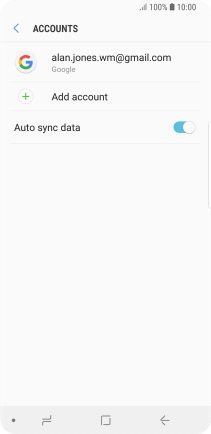

2. Create new email account

Press Add account.

Step 6 of 43

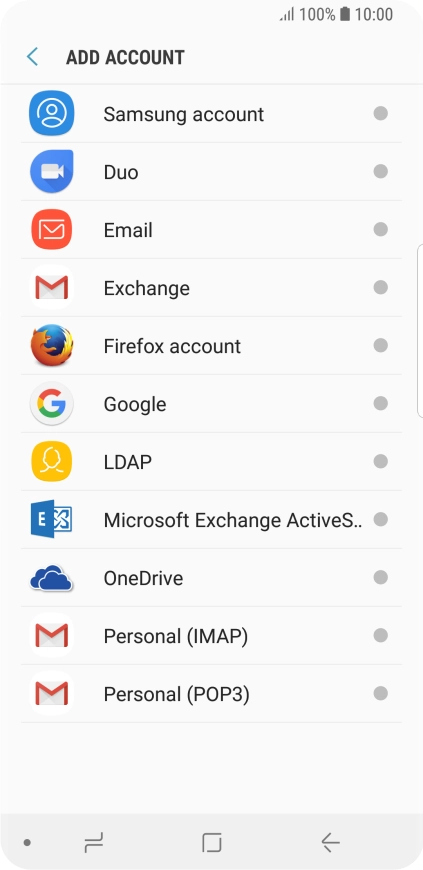

2. Create new email account

Press Email.

Step 7 of 43

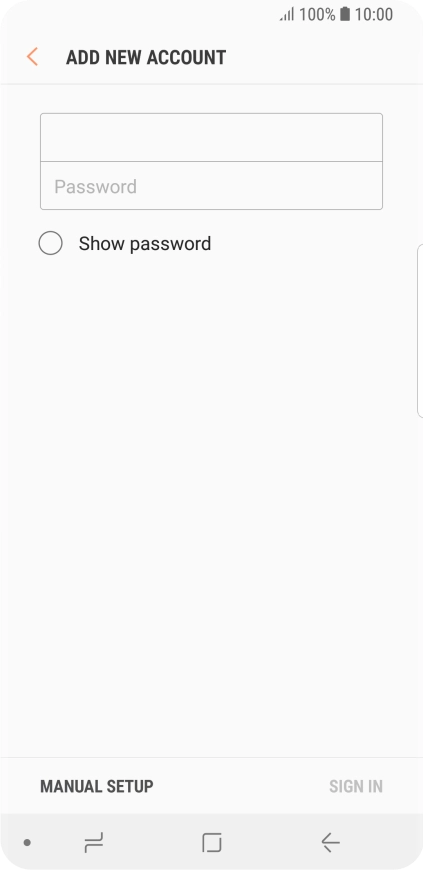

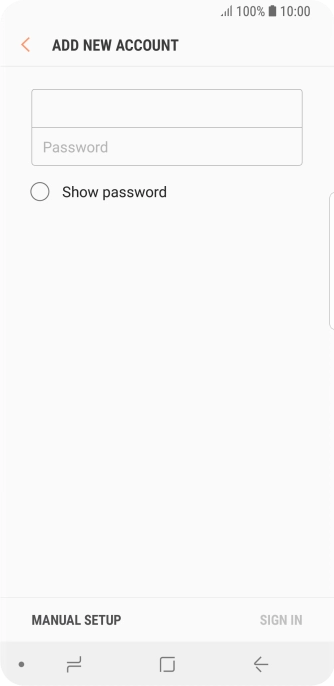

3. Enter email address

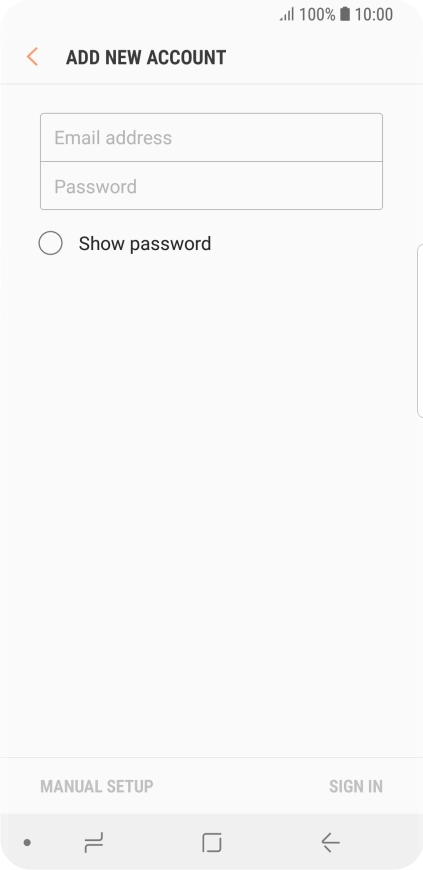

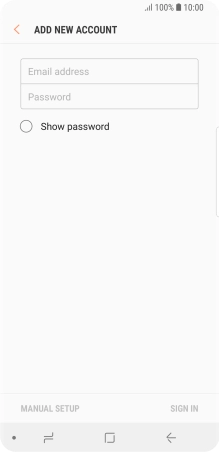

Press Email address and key in your email address.

Step 8 of 43

4. Enter password

Press Password and key in the password for your email account.

Step 9 of 43

4. Enter password

Press SIGN IN.

Step 10 of 43

4. Enter password

If this screen is displayed, you email account has been recognised and set up automatically. Follow the instructions on the screen to key in more information and finish setting up your phone.

Step 11 of 43

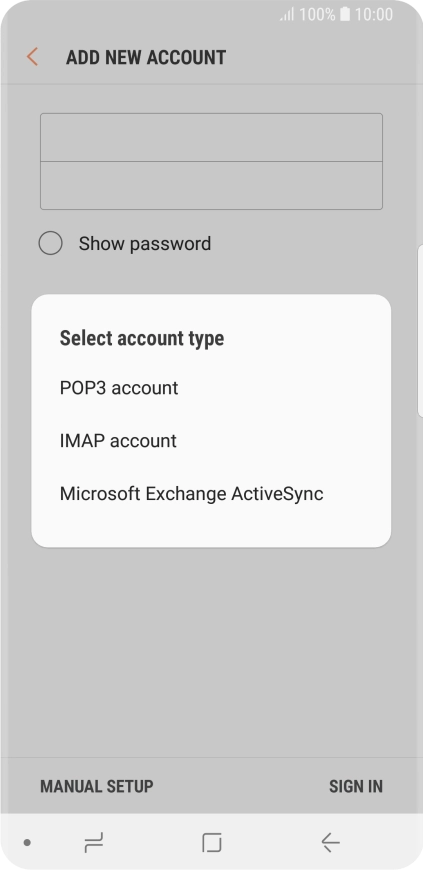

5. Select server type

Press IMAP account.

Step 12 of 43

6. Enter username

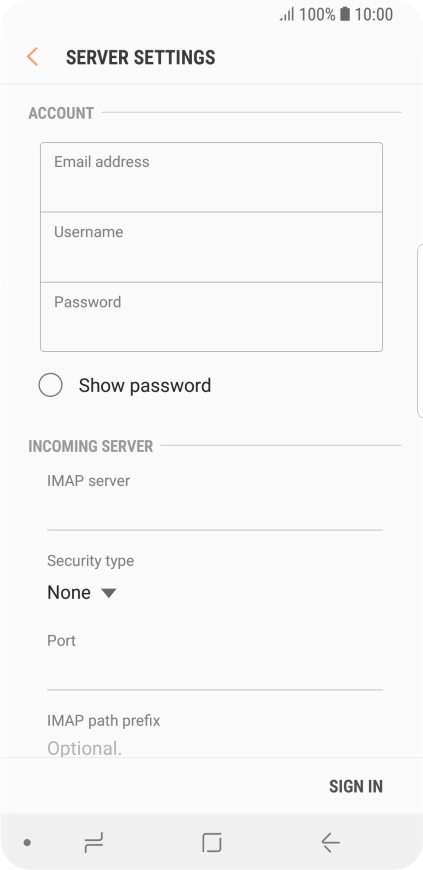

Press the field below "Username" and key in the username for your email account.

Step 13 of 43

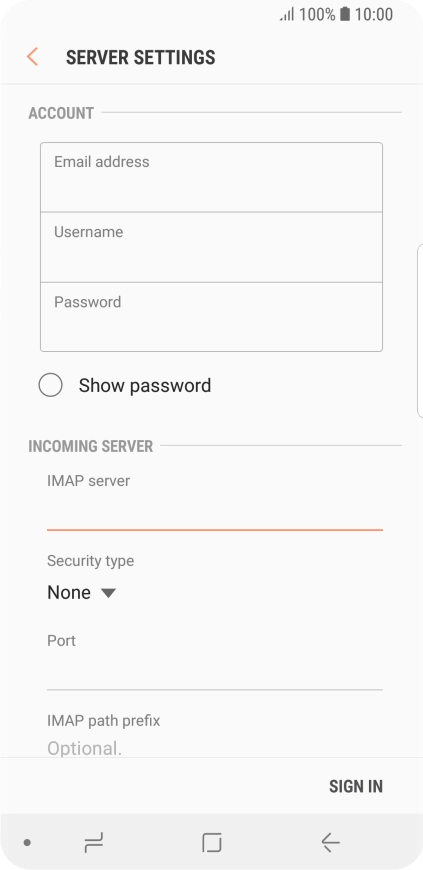

7. Enter incoming server

Press the field below "IMAP server" and key in the name of your email provider's incoming server.

Step 14 of 43

8. Turn off encryption of incoming email messages

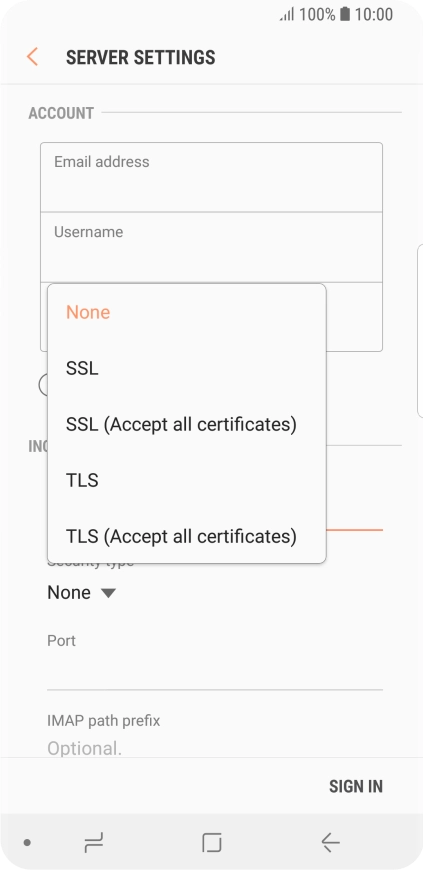

Press the drop down list below "Security type".

Step 15 of 43

8. Turn off encryption of incoming email messages

Press None to turn off the function.

143

143

143

Step 16 of 43

9. Enter incoming port

Press the field below "Port" and key in 143.

Step 17 of 43

10. Enter outgoing server

Press the field below "SMTP server" and key in the name of your email provider's outgoing server.

Step 18 of 43

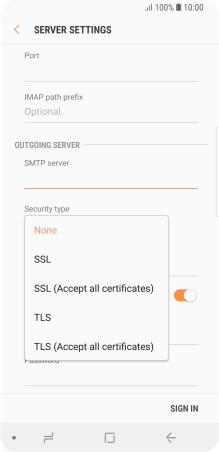

11. Turn off encryption of outgoing email messages

Press the drop down list below "Security type".

Step 19 of 43

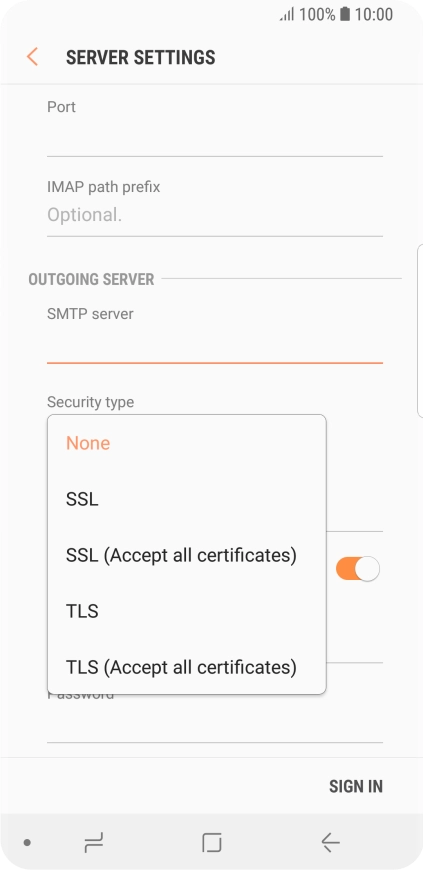

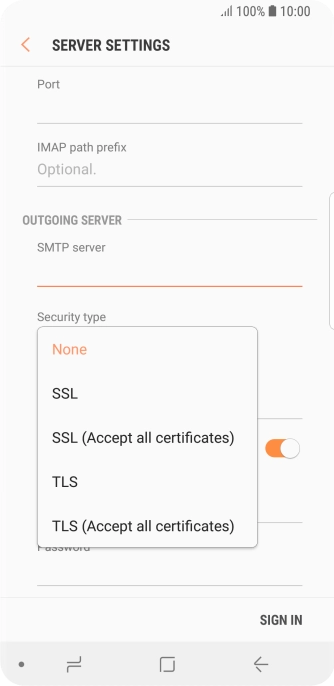

11. Turn off encryption of outgoing email messages

Press None to turn off the function.

25

25

25

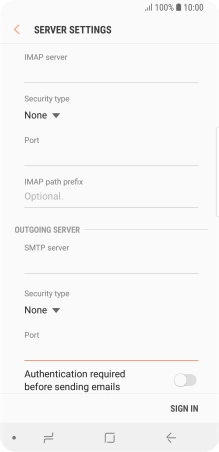

Step 20 of 43

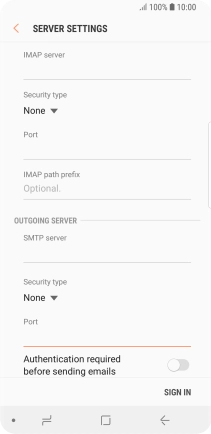

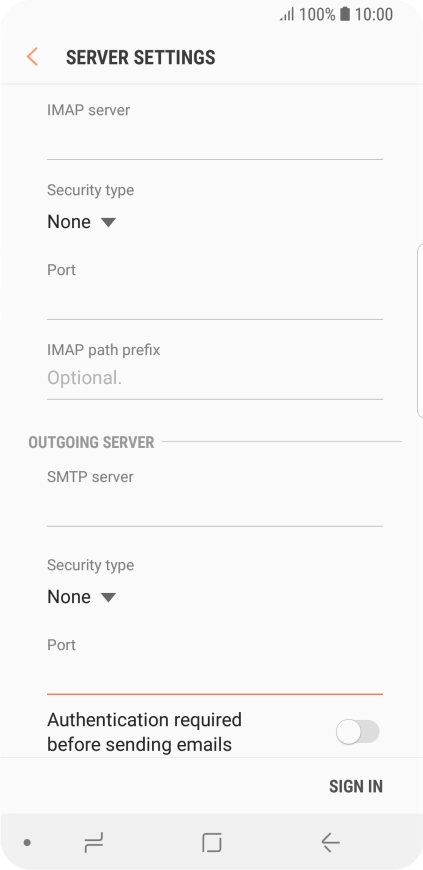

12. Enter outgoing port

Press the field below "Port" and key in 25.

Step 21 of 43

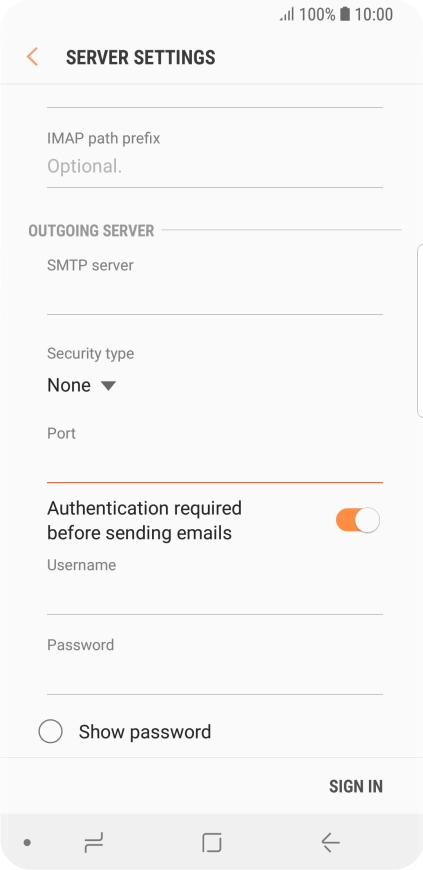

13. Turn on SMTP authentication

Press the indicator next to "Authentication required before sending emails" to turn on the function.

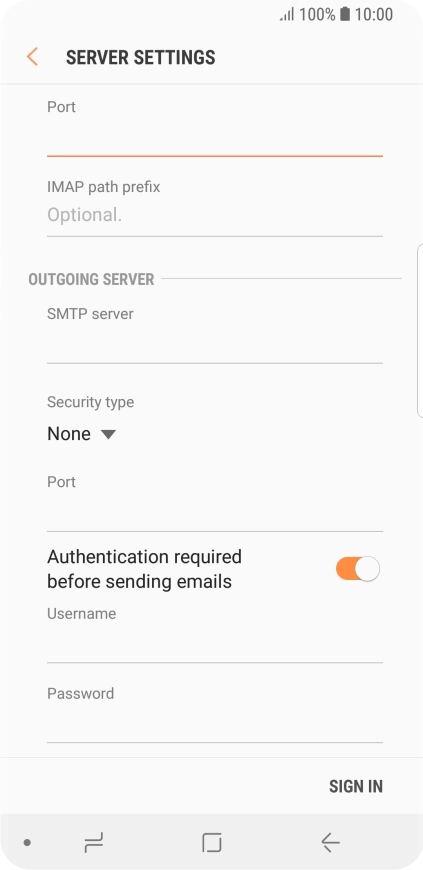

Step 22 of 43

13. Turn on SMTP authentication

Press the field below "Username" and key in the username for your email the email provider's outgoing server.

Step 23 of 43

13. Turn on SMTP authentication

Press the field below "Password" and key in the password for your email provider's outgoing server.

Step 24 of 43

13. Turn on SMTP authentication

Press SIGN IN.

Step 25 of 43

14. Return to the home screen

Press the Home key to return to the home screen.

Step 26 of 43

15. Find "Email"

Slide your finger upwards on the screen.

Step 27 of 43

15. Find "Email"

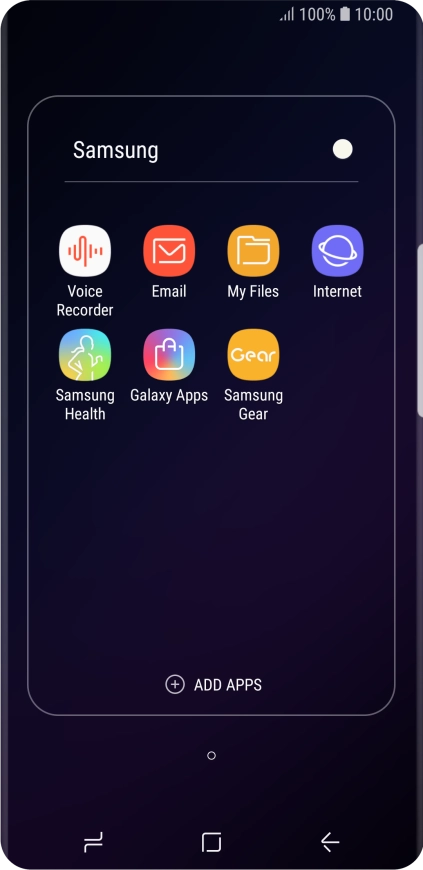

Press Samsung.

Step 28 of 43

15. Find "Email"

Press Email.

Step 29 of 43

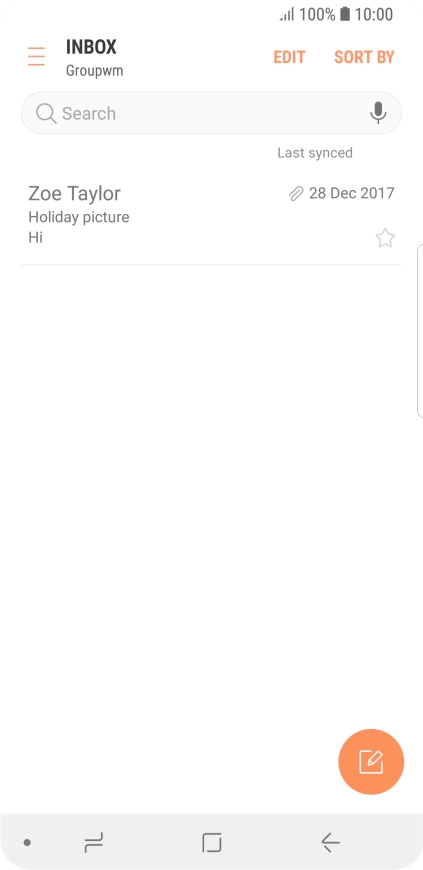

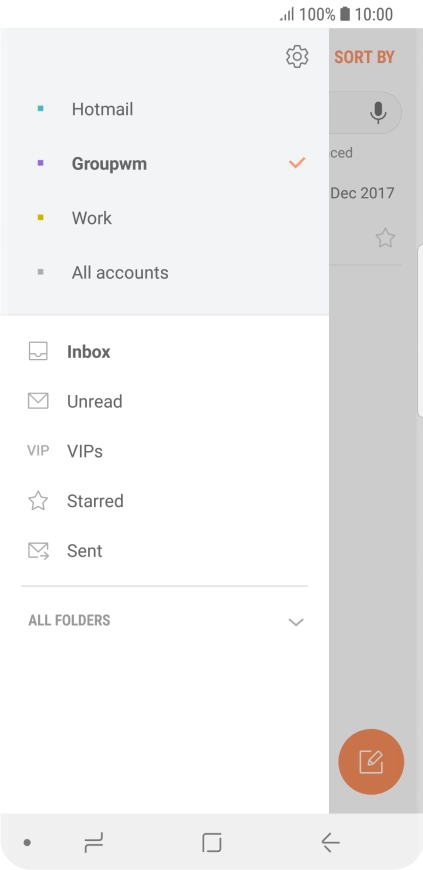

16. Turn email message notifications on or off

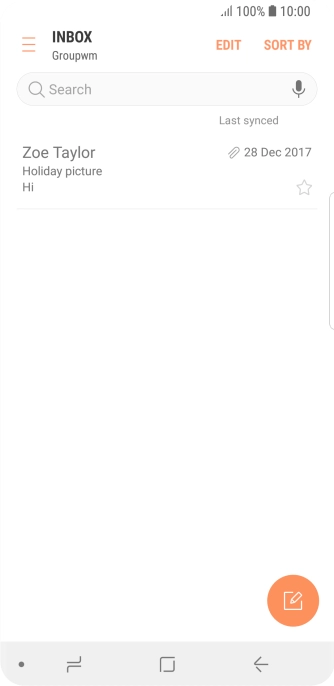

Slide your finger right starting from the left side of the screen.

Step 30 of 43

16. Turn email message notifications on or off

Press the settings icon.

Step 31 of 43

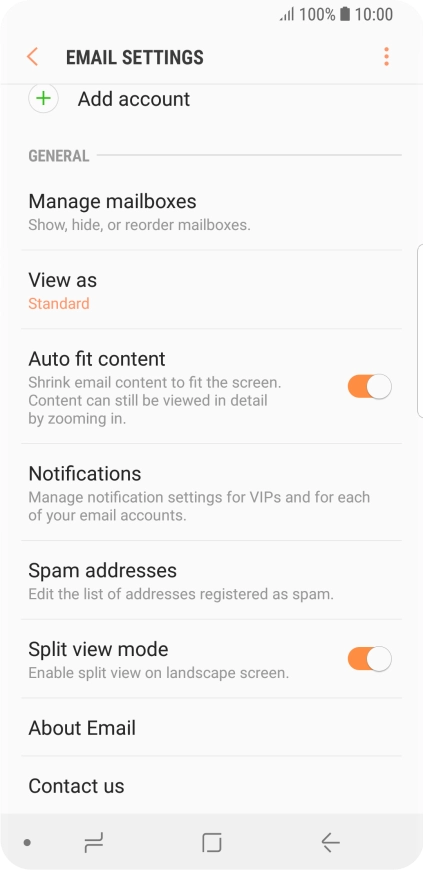

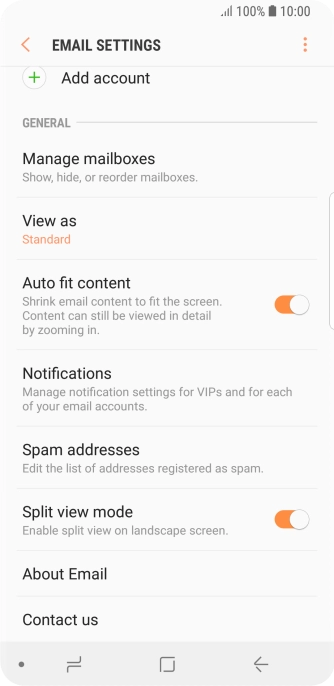

16. Turn email message notifications on or off

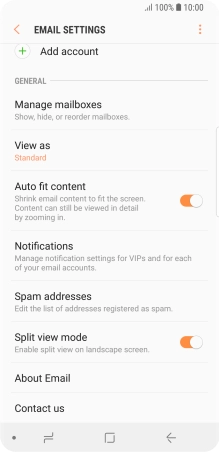

Press Notifications.

Step 32 of 43

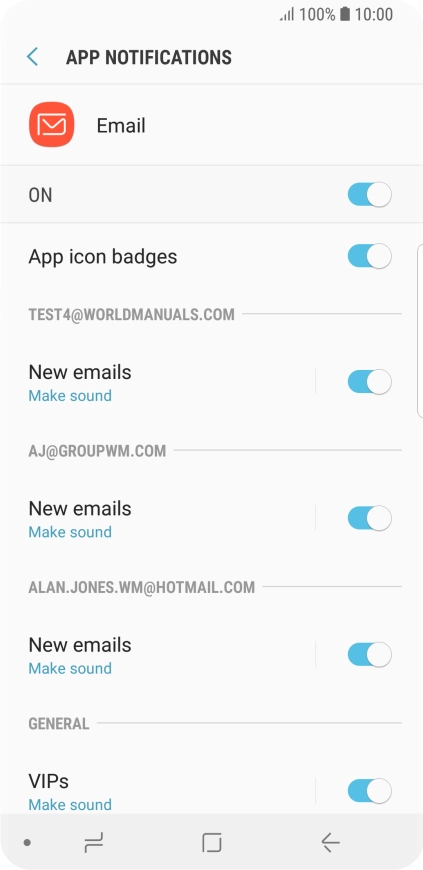

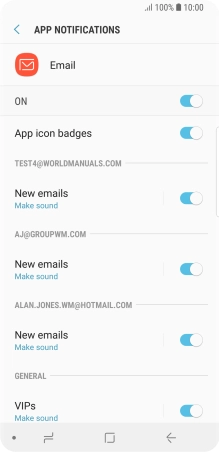

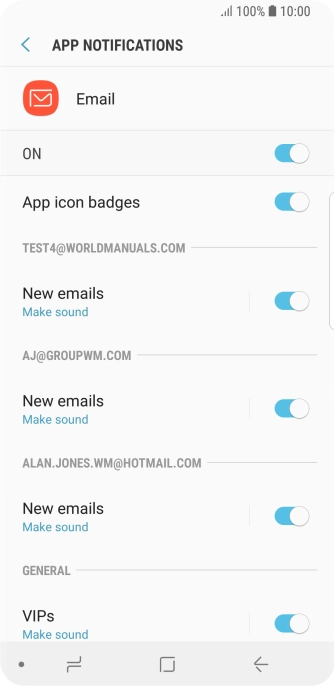

16. Turn email message notifications on or off

Press the indicator below the required email account to turn the function on or off.

Step 33 of 43

16. Turn email message notifications on or off

Press the Return key.

Step 34 of 43

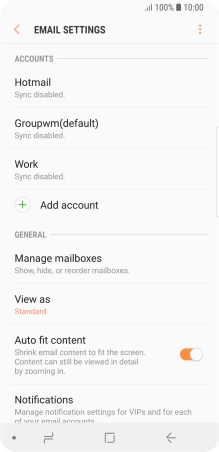

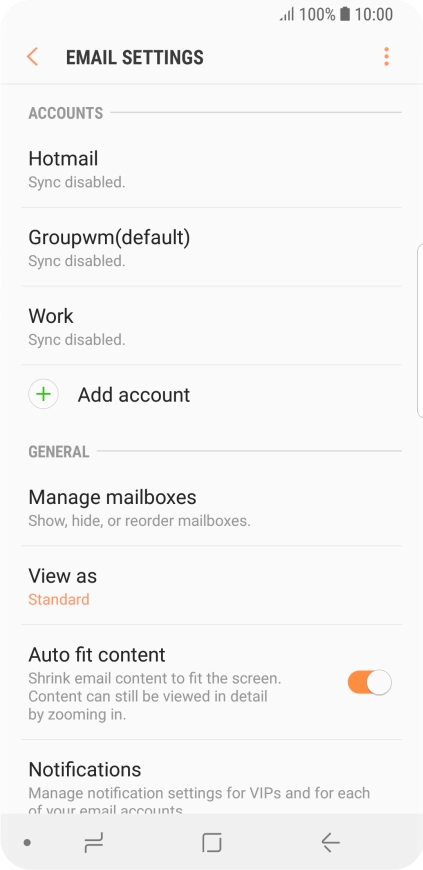

17. Turn on email message synchronisation

Press the required account.

Step 35 of 43

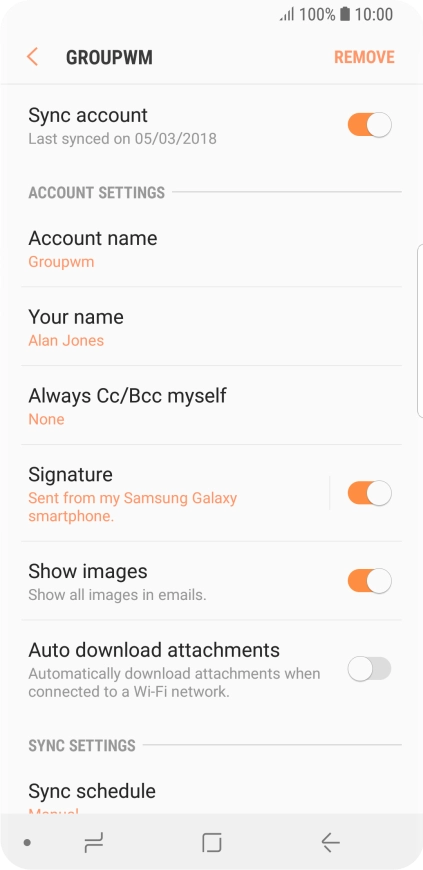

17. Turn on email message synchronisation

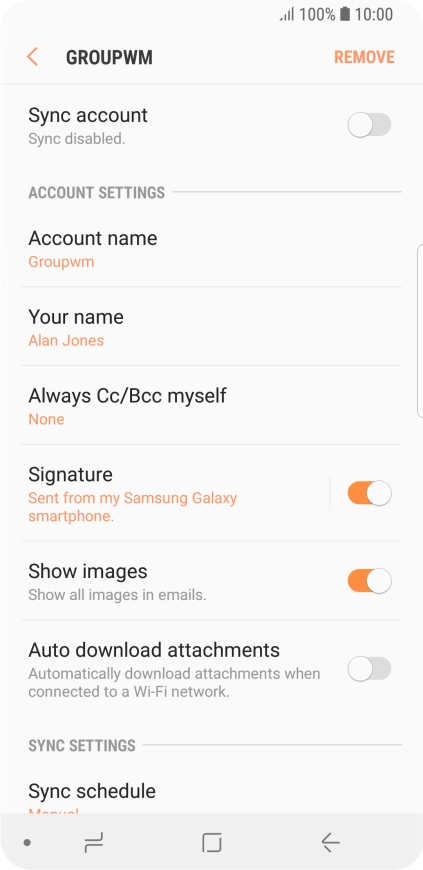

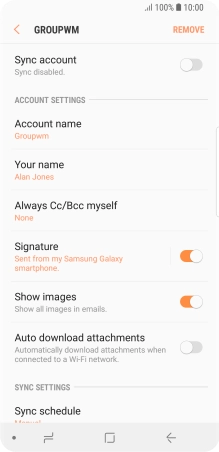

Press the indicator next to "Sync account" to turn on the function.

Step 36 of 43

18. Enter email account name

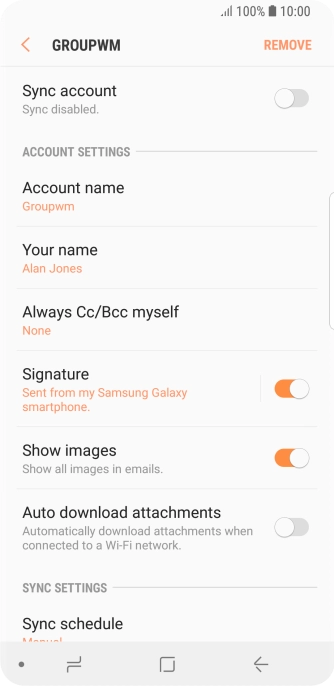

Press Account name.

Step 37 of 43

18. Enter email account name

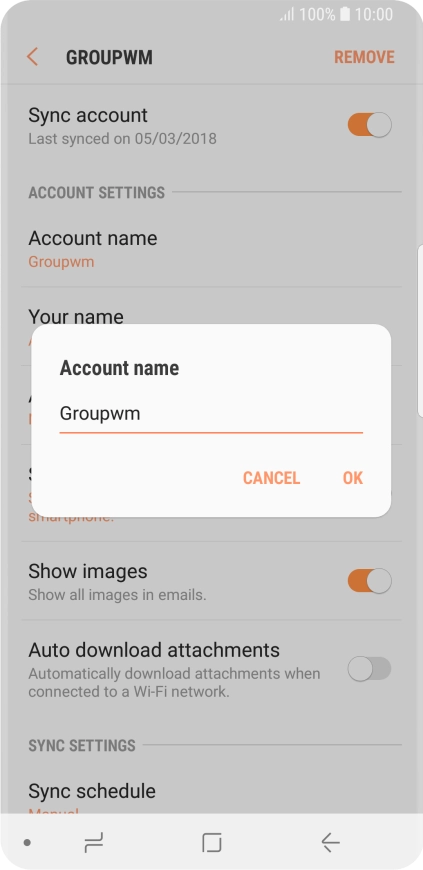

Key in the required name for the email account and press OK.

Step 38 of 43

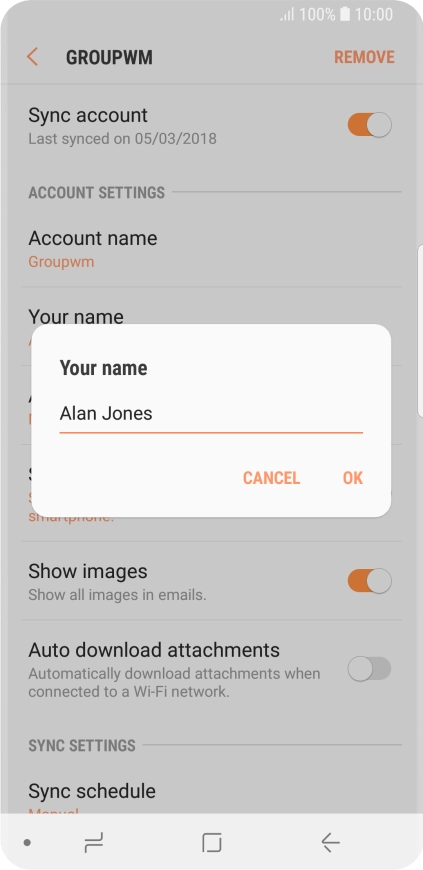

19. Enter sender name

Press Your name.

Step 39 of 43

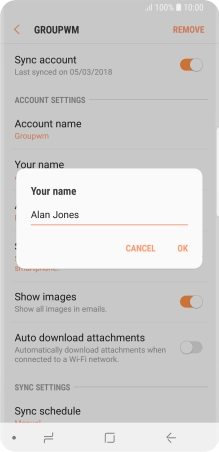

19. Enter sender name

Key in the required sender name and press OK.

Step 40 of 43

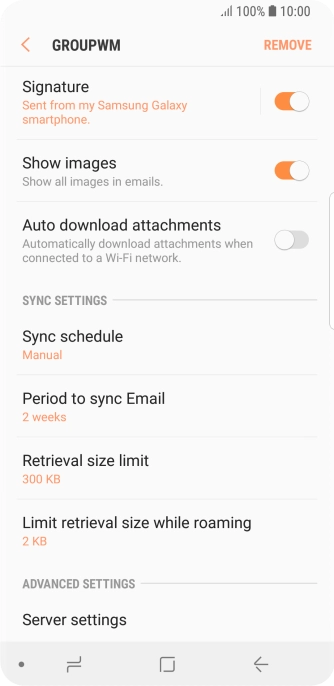

20. Select settings for retrieval of new email messages

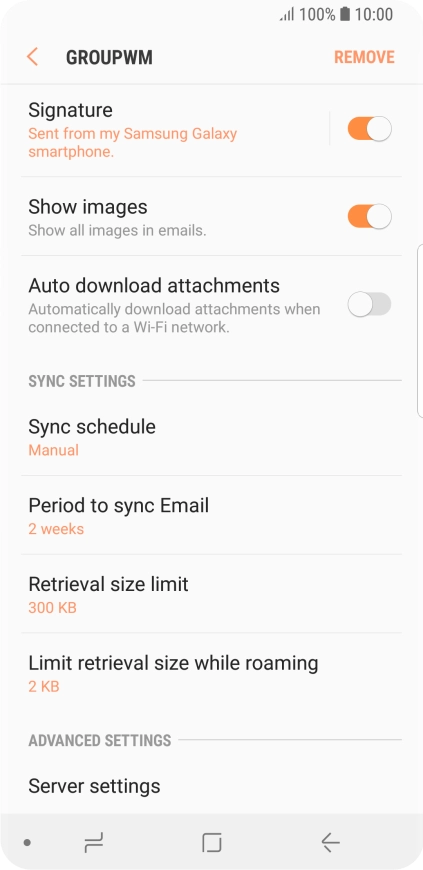

Press Sync schedule.

Step 41 of 43

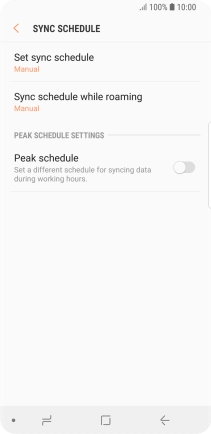

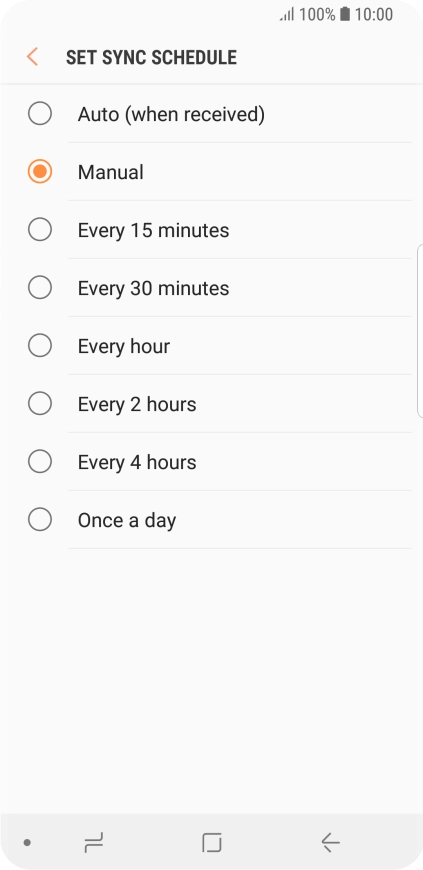

20. Select settings for retrieval of new email messages

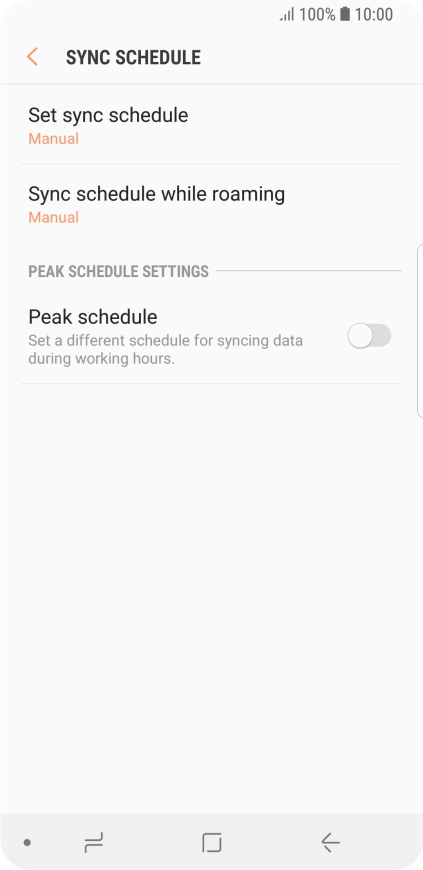

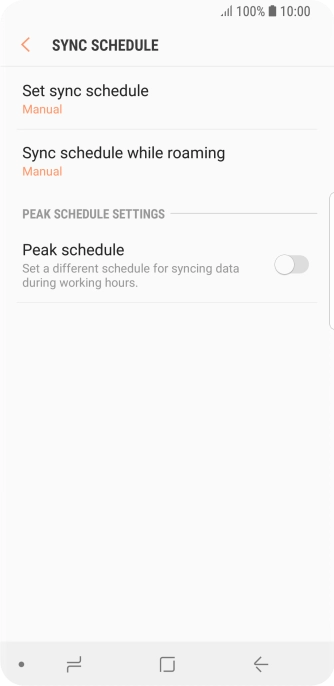

Press Set sync schedule.

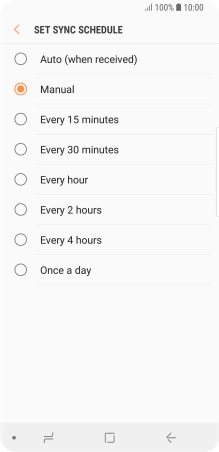

Step 42 of 43

20. Select settings for retrieval of new email messages

Press the required setting.

Step 43 of 43

21. Return to the home screen

Press the Home key to return to the home screen.
