Xiaomi Poco F3

Android 12.0

I can't send and receive picture messages on my Xiaomi Poco F3 Android 12.0

Cause 3 of 5: The phone has not been correctly set up for MMS

To send and receive MMS, the phone needs to be correctly set up for MMS.

Solution: Set up your phone for picture messaging.

Step 1 of 31

Find "Access point names"

Slide two fingers downwards starting from the top of the screen.

Step 2 of 31

Find "Access point names"

Press the settings icon.

Step 3 of 31

Find "Access point names"

Press SIM cards & mobile networks.

Step 4 of 31

Find "Access point names"

Press the required SIM.

Step 5 of 31

Find "Access point names"

Press Access point names.

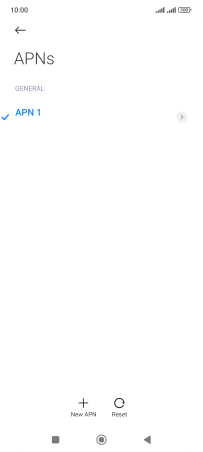

Step 6 of 31

Create new data connection

Press New APN.

Step 7 of 31

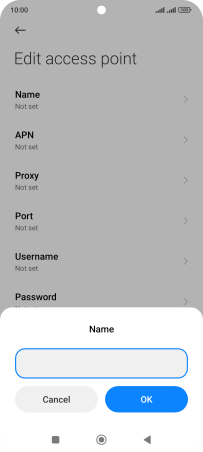

Create new data connection

Press Name.

Lebara MMS
Step 8 of 31

Create new data connection

Key in Lebara MMS and press OK.

Step 9 of 31

Enter APN

Press APN.

uk.lebara.mobi
Step 10 of 31

Enter APN

Key in uk.lebara.mobi and press OK.

Step 11 of 31

Enter username

Press Username.

wap
Step 12 of 31

Enter username

Key in wap and press OK.

Step 13 of 31

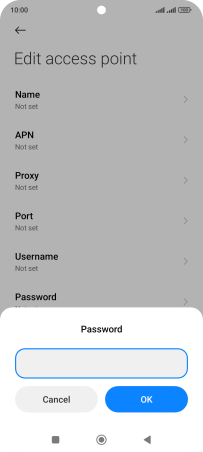

Enter password

Press Password.

wap
Step 14 of 31

Enter password

Key in wap and press OK.

Step 15 of 31

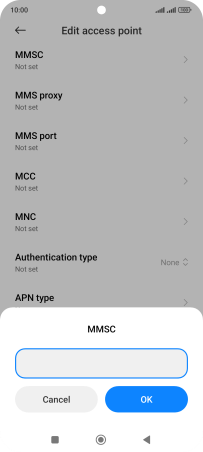

Enter MMSC

Press MMSC.

http://mms.lebara.co.uk/servlets/mms
Step 16 of 31

Enter MMSC

Key in http://mms.lebara.co.uk/servlets/mms and press OK.

Step 17 of 31

Enter IP address

Press MMS proxy.

212.183.137.012
Step 18 of 31

Enter IP address

Key in 212.183.137.012 and press OK.

Step 19 of 31

Enter port number

Press MMS port.

8799
Step 20 of 31

Enter port number

Key in 8799 and press OK.

Step 21 of 31

Enter country code

Press MCC.

234
Step 22 of 31

Enter country code

Key in 234 and press OK.

Step 23 of 31

Enter network code

Press MNC.

15
Step 24 of 31

Enter network code

Key in 15 and press OK.

Step 25 of 31

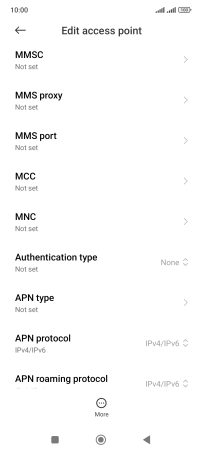

Select authentication type

Press Authentication type.

Step 26 of 31

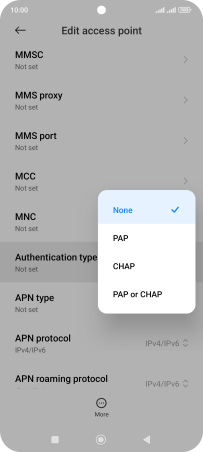

Select authentication type

Press None.

Step 27 of 31

Enter APN type

Press APN type.

mms
Step 28 of 31

Enter APN type

Key in mms and press OK.

Step 29 of 31

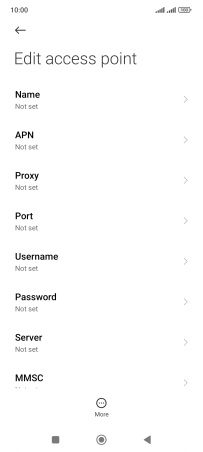

Save data connection

Press More.

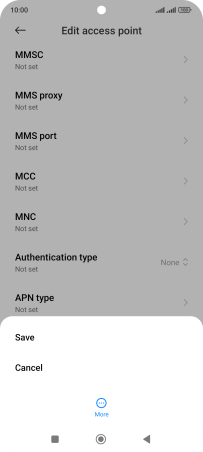

Step 30 of 31

Save data connection

Press Save.

Step 31 of 31

Return to the home screen

Press the Home key to return to the home screen.

1 Find "Access point names"

Slide two fingers downwards starting from the top of the screen.
Press the settings icon.
Press SIM cards & mobile networks.
Press the required SIM.
Press Access point names.

2 Create new data connection

Press New APN.
Press Name.
Key in Lebara MMS and press OK.
Lebara MMS

3 Enter APN

Press APN.
Key in uk.lebara.mobi and press OK.
uk.lebara.mobi

4 Enter username

Press Username.
Key in wap and press OK.
wap

5 Enter password

Press Password.
Key in wap and press OK.
wap

6 Enter MMSC

Press MMSC.
Key in http://mms.lebara.co.uk/servlets/mms and press OK.
http://mms.lebara.co.uk/servlets/mms

7 Enter IP address

Press MMS proxy.
Key in 212.183.137.012 and press OK.
212.183.137.012

8 Enter port number

Press MMS port.
Key in 8799 and press OK.
8799

9 Enter country code

Press MCC.
Key in 234 and press OK.
234

10 Enter network code

Press MNC.
Key in 15 and press OK.
15

11 Select authentication type

Press Authentication type.
Press None.

12 Enter APN type

Press APN type.
Key in mms and press OK.
mms

13 Save data connection

Press More.
Press Save.

14 Return to the home screen

Press the Home key to return to the home screen.
