OnePlus Nord 2 5G

Android 11.0

Set up your OnePlus Nord 2 5G Android 11.0 for picture messaging

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 20

1. Find "Access point name"

Slide two fingers downwards starting from the top of the screen.

Step 2 of 20

1. Find "Access point name"

Press the settings icon.

Step 3 of 20

1. Find "Access point name"

Press SIM card & mobile data.

Step 4 of 20

1. Find "Access point name"

Press the required SIM.

Step 5 of 20

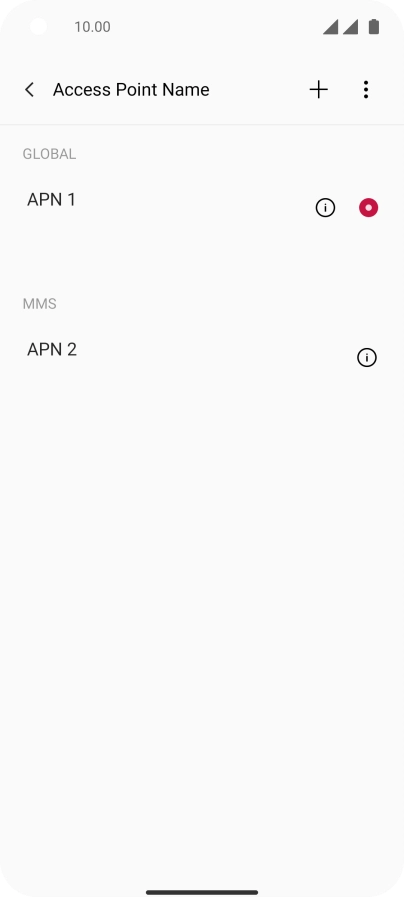

1. Find "Access point name"

Press Access point name.

Step 6 of 20

2. Create new data connection

Press the add icon.

Lebara MMS
Step 7 of 20

3. Enter a name for the connection

Key in Lebara MMS in the field below "Name".

uk.lebara.mobi
Step 8 of 20

4. Enter APN

Key in uk.lebara.mobi in the field below "APN".

wap
Step 9 of 20

5. Enter username

Key in wap in the field below "Username".

wap
Step 10 of 20

6. Enter password

Key in wap in the field below "Password".

http://mms.lebara.co.uk/servlets/mms
Step 11 of 20

7. Enter MMSC

Key in http://mms.lebara.co.uk/servlets/mms in the field below "MMSC".

212.183.137.012
Step 12 of 20

8. Enter IP address

Key in 212.183.137.012 in the field below "MMS proxy".

8799
Step 13 of 20

9. Enter port number

Key in 8799 in the field below "MMS port".

234
Step 14 of 20

10. Enter country code

Key in 234 in the field below "MCC".

15
Step 15 of 20

11. Enter network code

Key in 15 in the field below "MNC".

Step 16 of 20

12. Select authentication type

Press Authentication type.

Step 17 of 20

12. Select authentication type

Press None.

mms
Step 18 of 20

13. Enter APN type

Key in mms in the field below "APN type".

Step 19 of 20

14. Save data connection

Press the confirm icon.

Step 20 of 20

15. Return to the home screen

Slide your finger upwards starting from the bottom of the screen to return to the home screen.

1. Find "Access point name"

Slide two fingers downwards starting from the top of the screen.
Press the settings icon.
Press SIM card & mobile data.
Press the required SIM.
Press Access point name.

2. Create new data connection

Press the add icon.

3. Enter a name for the connection

Key in Lebara MMS in the field below "Name".
Lebara MMS

4. Enter APN

Key in uk.lebara.mobi in the field below "APN".
uk.lebara.mobi

5. Enter username

Key in wap in the field below "Username".
wap

6. Enter password

Key in wap in the field below "Password".
wap

7. Enter MMSC

Key in http://mms.lebara.co.uk/servlets/mms in the field below "MMSC".
http://mms.lebara.co.uk/servlets/mms

8. Enter IP address

Key in 212.183.137.012 in the field below "MMS proxy".
212.183.137.012

9. Enter port number

Key in 8799 in the field below "MMS port".
8799

10. Enter country code

Key in 234 in the field below "MCC".
234

11. Enter network code

Key in 15 in the field below "MNC".
15

12. Select authentication type

Press Authentication type.
Press None.

13. Enter APN type

Key in mms in the field below "APN type".
mms

14. Save data connection

Press the confirm icon.

15. Return to the home screen

Slide your finger upwards starting from the bottom of the screen to return to the home screen.
